Water pooling under your basin. A drain that barely moves. A smell that won’t leave the bathroom. Most of the time, one small part is responsible, the wash basin waste coupling.
People buy expensive basins, premium taps, and designer tiles. Then they fit a cheap coupling and wonder why things go wrong in 6 months.
This blog covers types, sizes, materials, installation, and fixes — everything you need before you buy or before you call a plumber.
What is a Wash Basin Waste Coupling and What Does It Contain?
A wash basin waste coupling is a drain fitting that joins the outlet hole of a wash basin to the waste pipe below it, and which provides a seal to the joint to prevent leaks.
Each Coupling is Made of 5 Parts:
1. Top Flange: The visible ring on the top of the basin drain. It acts as a strainer or jali to prevent hair and debris from entering the drain pipe.
2. Threaded Body: The cylindrical tube that goes through the drain hole in the basin and into the drain below. A full-thread body has threads along its entire length for more grip, while a half-thread body has threads only near the base and is used where there is limited space below the basin.
3. Overflow Slot: That notch on the side of the threaded body is what connects your basin’s overflow channel to the drain. A slotted coupling keeps that path open; an unslotted one seals it shut completely. Put an unslotted coupling in a basin built with an overflow hole, and water backs up inside the channel with nowhere to go.
4. Rubber Washer + Plastic Washer: These 2 washers sit between the basin’s underside and the locking nut. Their job is simple: stop water from pushing through the outlet hole and dripping below. No washer, no seal — it leaks from day one.
5. Locking Nut: The large nut is tightened from below the basin that clamps the entire assembly firmly in place.

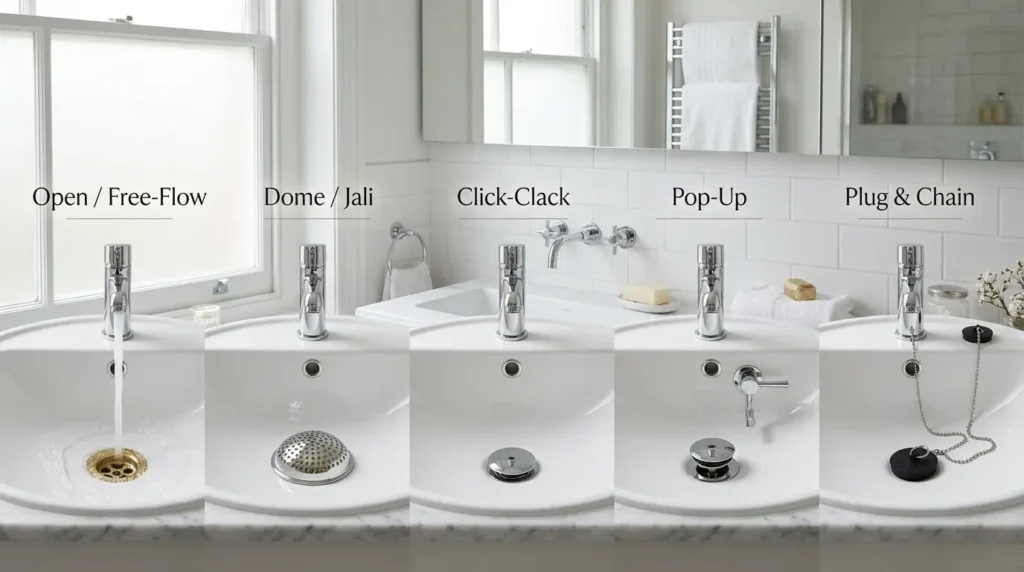

Types of Waste Couplings and Which One Fits Your Bathroom
The type you need depends on two things — your basin design and how often the bathroom is used.
| Type | How It Works | Best For | Not Suitable For | Price Range (India) |
| Open / Free-Flow | No stopper; water drains freely at all times | High-traffic bathrooms, utility areas, servant toilets | Basins where water retention is needed (shaving, soaking) | ₹60–150 |
| Dome / Jali | Perforated dome sits over the outlet; no moving parts | Kitchen sinks, outdoor basins, high-debris areas | Basins requiring water retention or a tight seal | ₹80–200 |
| Click-Clack / Push-Button | Push down to close, push again to open | Personal bathrooms, easy DIY replacement | Basins with very shallow outlet depth; some vessel basins | ₹250–600 |
| Pop-Up | The rod linkage connects to a lever near the tap; the tap handle opens and closes the drain | Designer basins, premium bathrooms, wall-mount basins | Basins with no pre-drilled overflow or linkage hole | ₹500–1,500 |
| Plug & Chain | Rubber plug on a chain; needs a chainstay hole on the basin | Vintage, classic, or clinic-style basins | Modern basins without a chainstay anchor point | ₹150–400 |
Waste Coupling Sizes and Materials
Indian wash basins use a 32mm (1.25 inch) drain outlet as standard. Kitchen sinks use 40mm (1.5 inch) — these 2 sizes are not interchangeable, and fitting the wrong one creates a poor seal and a persistent leak from day one.
To measure your drain hole, place a ruler across the widest internal diameter of the outlet opening. That number decides which wash basin waste coupling goes in.
Waste Coupling Materials
- SS304 Stainless Steel: The alloy contains 18% chromium and 8% nickel, making it non-porous and resistant to hard water scale buildup. It handles India’s humidity and acidic cleaning chemicals without corroding. This is the best long-term material for any primary bathroom.
- SS202 Stainless Steel: A lower-nickel grade that manufacturers often label simply as “stainless steel” on the packet. In humid Indian bathrooms, SS202 shows surface rust within 18–24 months. Avoid it unless the supplier confirms the grade in writing.
- Solid Brass: Heavy, naturally antimicrobial, and resistant to hard water deposits. A quality, solid brass wash basin waste coupling lasts 10–15 years in high-use or commercial bathrooms. Next to SS304, it is the most reliable material available in the Indian market.
- Chrome-Plated: A finish, not a base material. The performance depends entirely on what sits underneath the chrome layer. Cheap chrome over SS202 peels within 12 months in wet conditions. Always ask for the base material before buying.
- ABS/PVC Plastic: Works in a guest bathroom with light use. However, common Indian bathroom cleaners and prolonged humidity degrade plastic couplings faster than any metal option.
In Indian cities with high TDS water, SS304 or solid brass are the only materials worth using in a primary bathroom.
How to Choose the Wash Basin Waste Coupling
Before purchasing, run through these 5 steps in order.
1. Check Your Basin Type: Pedestal basins have an overflow channel built into the ceramic, so they need a slotted wash basin waste coupling. Countertop and vessel basins have no overflow path, so they need an unslotted coupling. Wall-hung basins follow the same rule as pedestals — slotted.
2. Measure the Drain Hole: Use a ruler across the widest internal diameter. A standard wash basin reads 32mm. A kitchen sink reads 40mm. Buy only what matches that number.
3. Choose the Coupling Type: Use the basin type and bathroom-use logic from the previous section. Do not guess. The wrong type creates either a flooding risk or a drain that never fully closes.
4. Choose the Material: SS304 or solid brass for any primary bathroom. ABS or PVC only in a secondary or guest bathroom with light daily use.
5. Check Finish and Trap Compatibility: Make sure the Finish of the coupling matches your tap (chrome, matte black, rose gold). Then confirm the lower thread exit diameter fits your existing bottle trap, P-trap, or concealed trap inlet before you leave the shop.
Red Flags When Buying:
- No grade specification on the label — the box just says “stainless steel” with no SS304 or SS202 marking.
- No brand name or warranty information is printed on the packaging.
- No slotted or unslotted marking anywhere on the box or product itself.
How to Install a Waste Coupling Without a Plumber
Tools you will need:
- Adjustable pliers
- PTFE tape (thread seal tape)
- Silicone sealant or plumber’s putty
- Flat-head screwdriver
- Cloth and a small bucket
Steps to Install a Waste Coupling
1. Clean the drain hole — scrape out all old sealant, putty, and residue from the basin outlet. Dry the surface completely before starting.
2. Apply silicone sealant or plumber’s putty around the underside rim of the top flange before pushing it in — this is what stops water from seeping between the flange and the basin.
3. Insert the coupling from above. Push it downward through the drain hole and press the flange firmly flat against the basin.
4. From below, slide on the rubber washer first, then the plastic washer, then hand-tighten the locking nut until it holds.
5. Hold the top flange steady by pressing a flat-head screwdriver into the strainer slots. Tighten the locking nut with pliers — firm, not forceful. Overtightening cracks ceramic.
6. On slotted couplings, align the overflow slot with the basin’s internal overflow channel before final tightening. A misaligned slot blocks the overflow path completely.
7. Wrap PTFE tape around the lower thread exit — 3 full clockwise turns minimum. Attach your bottle trap or waste pipe over this thread.
8. Run water for 60 seconds and check under the basin — look at the flange joint, the locking nut, and where the trap connects. Any drip shows up fast.
9. Allow silicone to cure for 24 hours before regular use. Water contact before curing breaks the seal.
Common Mistakes:
- Overtightening the locking nut and cracking the basin.
- Skipping PTFE tape on the lower threads and creating a slow drip at the trap joint.
- Forgetting to align the overflow slot on a slotted wash basin waste coupling causes water backup in the overflow channel.
Common Problems and How to Fix Them
Problem 1: Leak Under the Basin
Water escapes because the seal has failed at one of 3 points. Shine a torch under the basin while water drains to find the exact source before touching anything.
- Flange joint dripping: The silicone seal has failed. Dry the area, reapply silicone, and let it cure for 24 hours.
- Locking nut area wet: The rubber washer has worn out or shifted out of position. An overtightened nut pushes the washer sideways; loosen it, reposition the washer, then re-tighten firmly.
- Trap connection dripping: Wrap 3 turns of PTFE tape on the lower thread and retighten the trap.
Problem 2: Slow Drainage
The blockage sits at one of 3 locations. Work from the top down.
- Dome or strainer clogged: Remove it and soak it in hot water with baking soda for 15 minutes.
- Pop-up stopper not fully opening: The pivot clip on the push-rod has slipped. Reattach it one notch higher on the rod.
- Trap blocked downstream: Disassemble the bottle trap, clean out debris, and reassemble with fresh PTFE tape on threads.
Problem 3: Bad Smell
A dry trap, biofilm or blocked overflow channel can be the source of the smell.
- Dry trap: The water seal evaporated in a basin that was not used very often. Fill it with 1 litre of water.
- Biofilm on strainer: Flush with equal parts baking soda and white vinegar. Let it sit for 10 minutes and flush with hot water.
- Misaligned overflow slot: Rotting debris collects in the overflow channel. Loosen the coupling to the wash basin waste, realign the slot and retighten.
As a result, most leaks and smells resolve with a washer, PTFE tape, or a basic clean. However, replace the wash basin waste coupling entirely if you see corrosion on the coupling body, chrome peeling from the flange, a rubber washer that fails repeatedly within months, or a locking nut with stripped threads.
Final Thoughts
The right wash basin waste coupling comes down to 3 things: basin type, water quality, and how often the bathroom gets used. Get these 3 wrong and no amount of re-sealing fixes the problem.
For any primary bathroom in an Indian home, SS304 stainless steel or solid brass is the material to buy. Everything else is a compromise.
Browse Begin Faucets’ range of waste couplings to find the right fit for your basin.
Frequently Asked Questions
How Long Does a Wash Basin Waste Coupling Last?
SS304 stainless steel and solid brass couplings last 10–15 years with basic maintenance. The rubber washer needs replacement at the 5–7 year mark. Chrome-plated or plastic couplings last 3–5 years in Indian bathroom conditions.
Can I Use a Kitchen Sink Waste Coupling on a Wash Basin?
No. Kitchen sink couplings are 40mm; wash basin waste couplings are 32mm. The sizes are not interchangeable. Forcing one in place creates a gap at the outlet and a permanent leak.
Does the Waste Coupling Come Included With the Basin?
No. Basins and waste couplings are sold separately across all Indian brands. Confirm slotted or unslotted and the correct drain diameter before purchasing either part.
How do I know if I Need a Slotted or Unslotted Coupling?
Look for the overflow hole, a small opening at the rear of the basin, below the tap area. If it exists, buy a slotted coupling.
